GA3568-DL_ SMPS Flyback Transformer For Akros AS1135 PoE Controller
Feature:
• Flyback transformers for IEEE802.3at PoE applications
• Input voltage GA3568: 36 – 57 V; HA3809: 10 – 57 V
• 1500 Vrms, one minute isolation from primary and bias to
secondary and sync windings.
| Part number | Inductance at 0 A ±10% (μH) | Inductance at Ipk min (μH) | DCR max (Ohms) | Leakage inductance max (μH) | Turns ratios6 | Ipk (A) | Output | |||||
| pri | sec | bias | sync | pri : sec | pri : bias | pri : sync | ||||||
| GA3568-DL_ | 60 | 54 | 0.132 | 0.0055 | 0.220 | 0.200 | 1.20 | 1 : 0.167 | 1 : 0.29 | 1 : 0.29 | 2.6 | 3.3 V, 9.1 A |
GA3568-DL_ SMPS Flyback Transformer For Akros AS1135 PoE Controller
Shape and Dimensions:

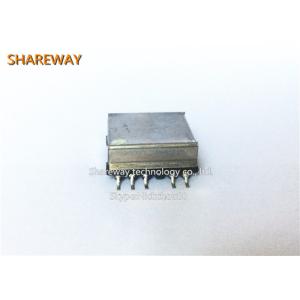

Product picture:
