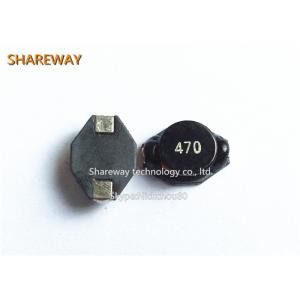

DO1607B-105ML_ Backlight Inductors for backlight applications
Description:
The low profile DO1607B Series has the high breakdown
voltage ratings required for backlight applications. Only
2,49 mm high, they have a footprint of 6,6 × 4,5 mm.
These inductors are constructed of high temperature materials
that provide excellent heat deflection to prevent
damage during solder reflow. Standard inductance values
range from 1 to 6.8 mH and custom values are available
to meet specific requirements.
| Part number | L ±20% (μH) | DCR max (Ohms) | Insulation core-winding (MOhms) | Isat (A) | Irms (A) |
| DO1607B-105ML_ | 1.0 | 19 | >10 | 100 | 150 |
| DO1607B-155ML_ | 1.5 | 21 | >10 | 75 | 140 |
| DO1607B-225ML_ | 2.2 | 42 | >10 | 60 | 100 |
| DO1607B-335ML_ | 3.3 | 52 | >10 | 50 | 90 |
| DO1607B-475ML_ | 4.7 | 80 | >10 | 45 | 75 |
| DO1607B-685ML_ | 6.8 | 125 | >10 | 40 | 60 |
DO1607B-105ML_ Backlight Inductors for backlight applications
Shape and Dimensions:
